Designed for modern tactical operations, the FALCON-6L combines superior thermal imaging, rapid target recognition, all-weather capability, and exceptional precision to deliver reliable performance in the most demanding environments.

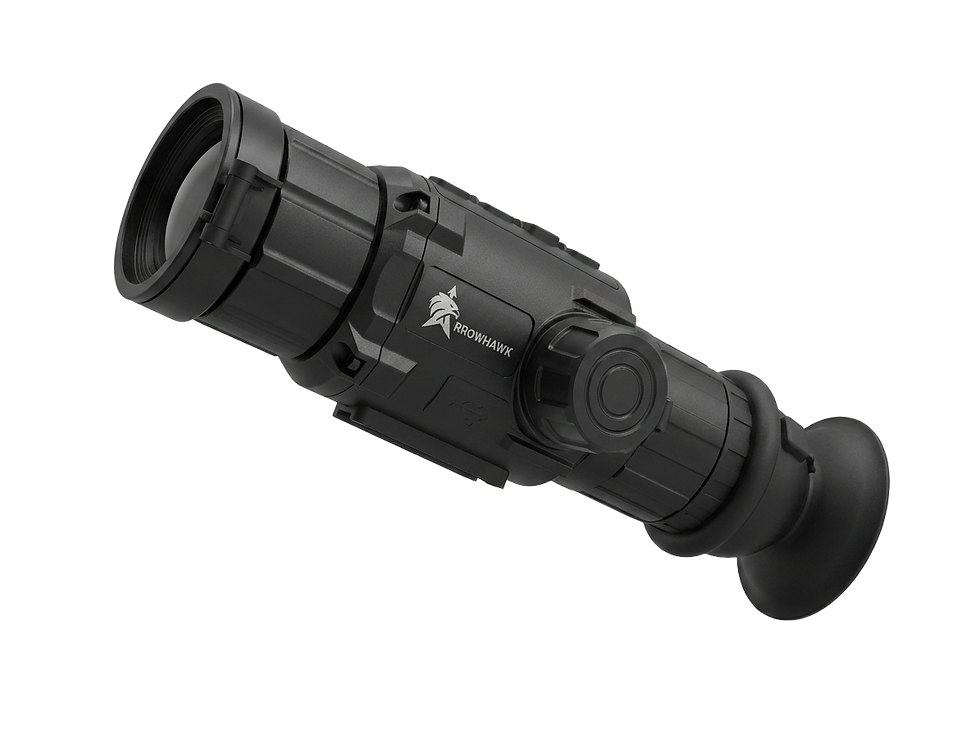

FALCON-6L

Temperature

Operating Temperature: -20°C to+50°C

StorageTemperature: -40°C to+60°C

Detector & Sensor Performance

Detector Type

Uncooled

Eye Relief

50 mm

Detector Resolution

640 X 480 pixels

Frame Rate

50

Pixel Pitch

12

μm

Field of View (FOV)

8° × 6°

Dioptre Range

-4D to +4D

Compact & Lightweight

Compact and lightweight design offering detection up to 1800 m and recognition up to 1200 m. Its streamlined form factor provides convenient handling and portability, while maintaining reliable thermal imaging performance across varied conditions and applications.

Electronic Zoom

X

1

2 X

4 X

8 X

Laser Range Finding

Optional Integrated LRF

Type

Class 1 eye-safe

Measuring Distance

1000 m

Polarity

White-hot/Blackhot/Ironbow/ Glowbow/Sepia/Red-hot/Ghost

Reticle & Zeroing

Reticle

10 different reticles

Auto Change

Reticle switches color automatically during target engagement.

Zeroing Profiles

5

Weapon Compatibility

Suitable mounting brackets are provided for seamless integration with standard-issue weapon systems including Sig Sauer 716, INSAS Rifle, AK-203, TAVOR, INSAS LMG, Negev LMG, MMG, AGS-30 (Automatic Grenade Launcher), 84 mm Rocket Launcher (RL), and other compatible platforms, ensuring secure mounting and reliable operational performance.

Display & Interface

Display Type

OLED

Display Resolution

1024 X 768 pixels

Standby Control

Brightness Control

Contrast Control

System Self Check

Digital Magnetic Compass

Microphone
